Ati-Shoplifting Detection Gate ETAGTRON PG300 For Retail Store Protection
info@etagtron.com
008615301912960| Item | Parameter |
| Product Model | PG300 AM EAS System |
| Material | Acrylic+Metal |
| Working Frequency | Standard 58KHz AM frequency |
| Detection Width | Single pair: 1.8m; Maximum support: 2.4m |
| Alarm Mode | Audible alarm + LED flash visual alarm |
| Working Voltage | AC 110V-240V, 50/60Hz global universal voltage |
| Power Consumption | Standby ≤8W; Alarm working ≤15W |
| Product Size (Single Gate) | 152cm (H) × 30.5cm (W) × 2cm (D) |
| Net Weight | 18kg/piece |
| Working Temperature | -10℃ ~ +55℃ |
| Humidity Resistance | 10%~90% RH, non-condensing |
| Anti-interference Level | Industrial grade |

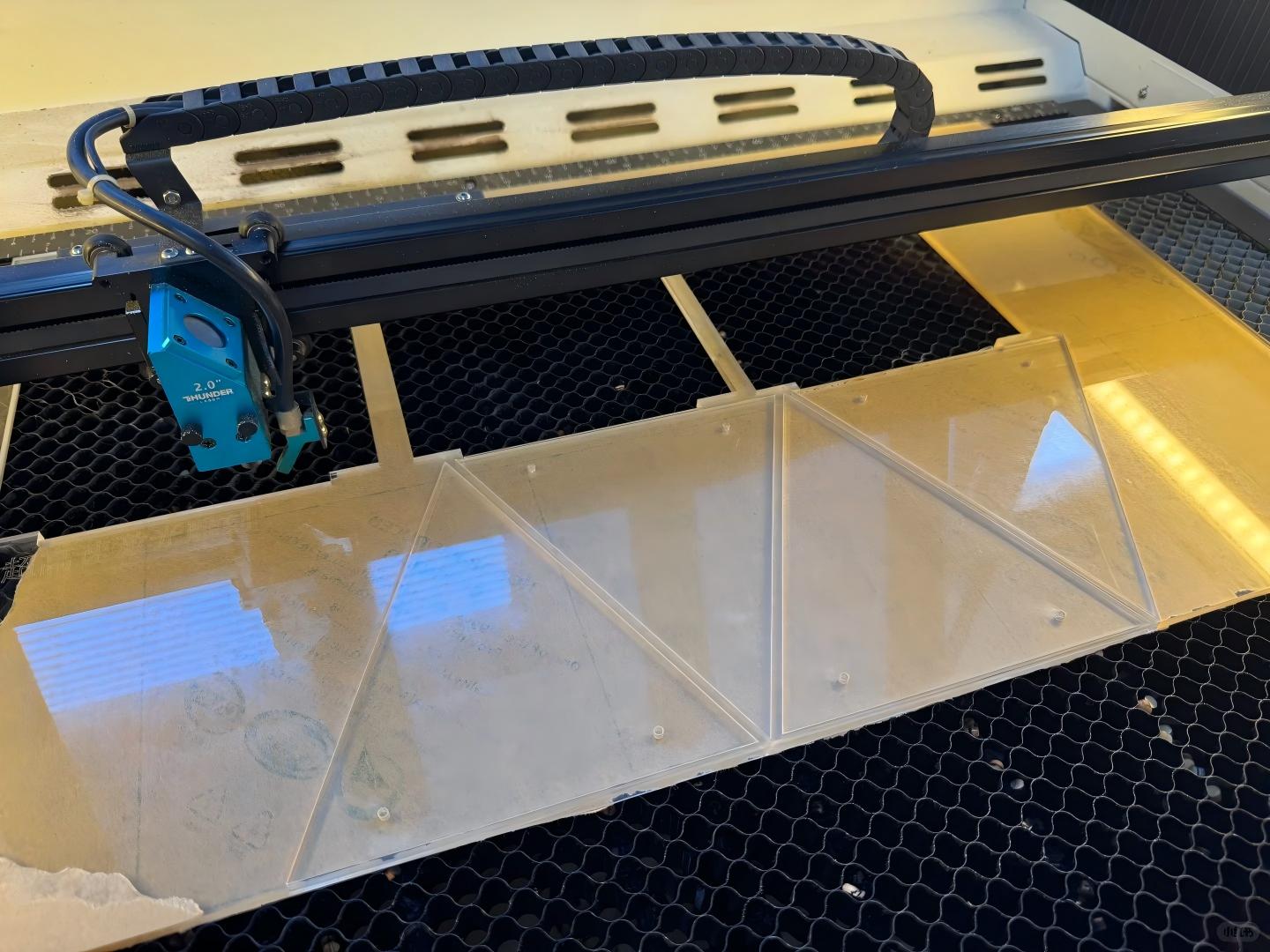

Precision Cutting & Polishing: Adopt CNC fully automatic laser cutting for acrylic panels, followed by 3-time fine edge polishing to ensure smooth edges without burrs.
Anti-rust Treatment: All internal metal parts go through pickling, phosphating and electrostatic spraying double anti-rust process, service life extended by more than 3 years compared with ordinary products.

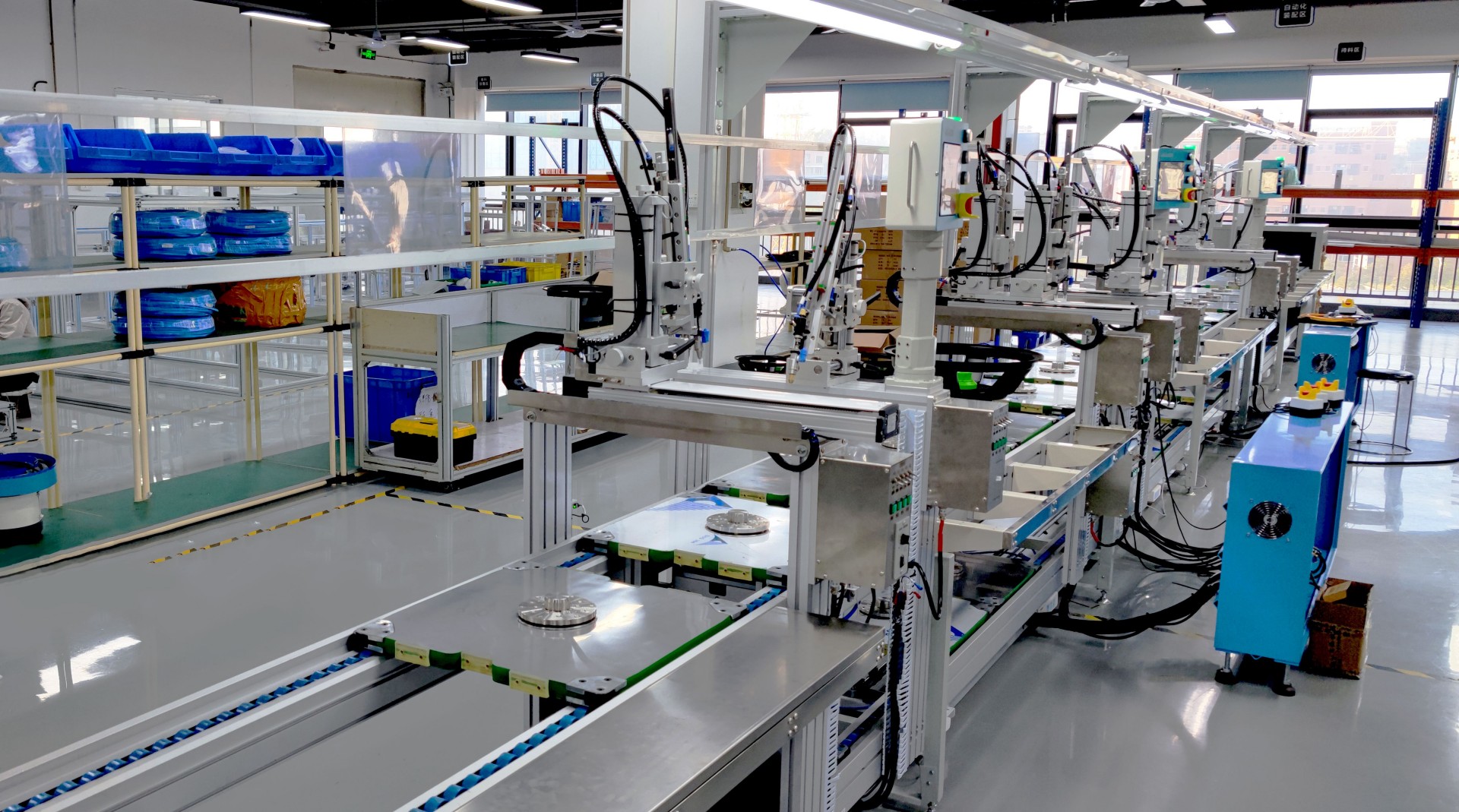

Welding & Assembly: Intelligent robot spot welding for internal circuit boards, stable circuit connection; modular integrated assembly, convenient for later maintenance and parts replacement.

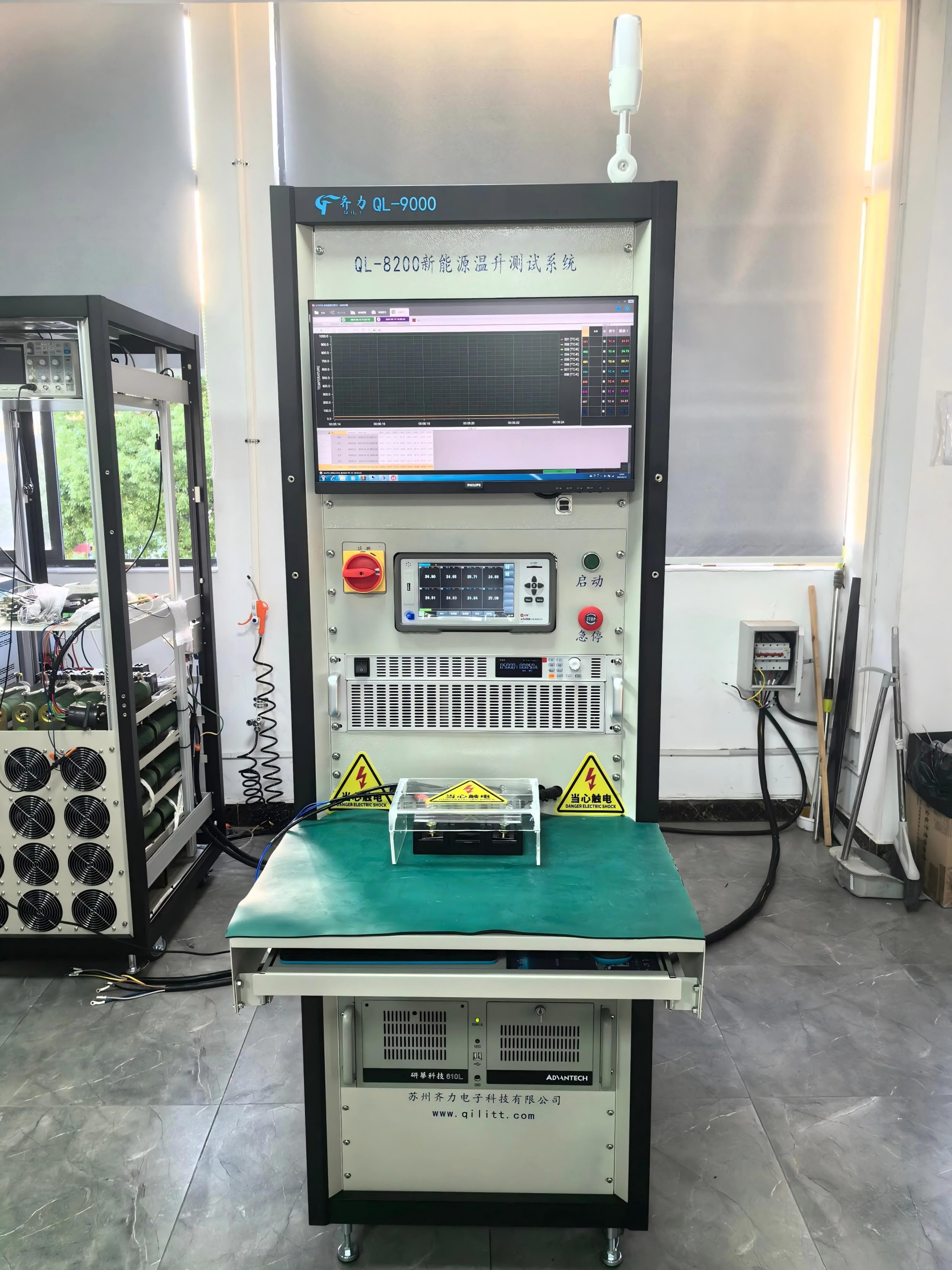

Aging Test: Each finished product undergoes 72-hour uninterrupted power-on aging test before leaving factory to eliminate potential circuit faults.

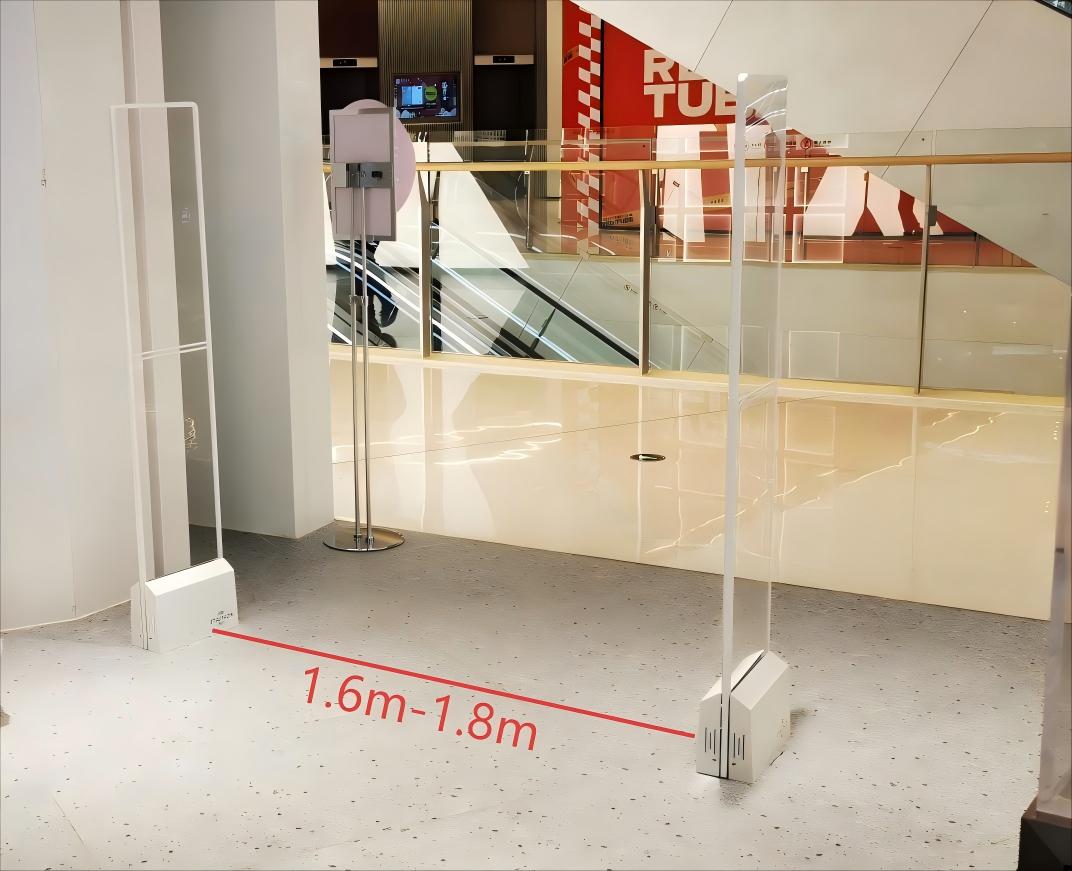

2.Place two detection gates symmetrically at store entrance, reserve 1.6m-1.8m detection channel.

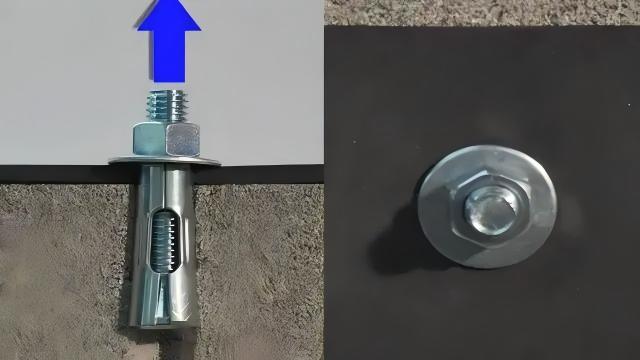

1.Fix the bottom base with expansion screws to prevent accidental collision and displacement.

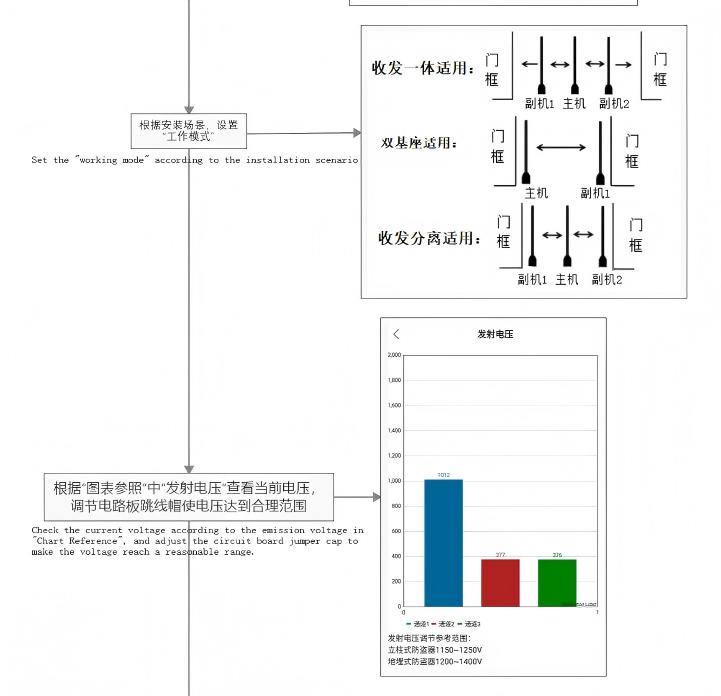

4.Sensitivity adjustment can be achieved through built-in buttons, web platforms, and apps based on on-site environmental interference.
3.Connect power cord and turn on the power switch, the system will complete self-check automatically within 10 seconds.
1.No professional wiring required, plug and play, one person can finish installation within 15 minutes.
2.Support remote debugging on the network, both web platforms and mobile apps can be debugged, and the device automatically connects to WiFi.
3.Free installation manual and operation video provided for all orders.
PG300 AM anti-theft system is widely applicable for all kinds of retail places needing loss prevention:
- Apparel stores, footwear bags boutiques, underwear stores
- Supermarkets, convenience stores, fresh retail shops
- Cosmetics stores, beauty salons, eyewear stores
- Bookstores, stationery stores, toy stores, electronics retail shops
- Warehouse access anti-theft inspection, factory staff channel management

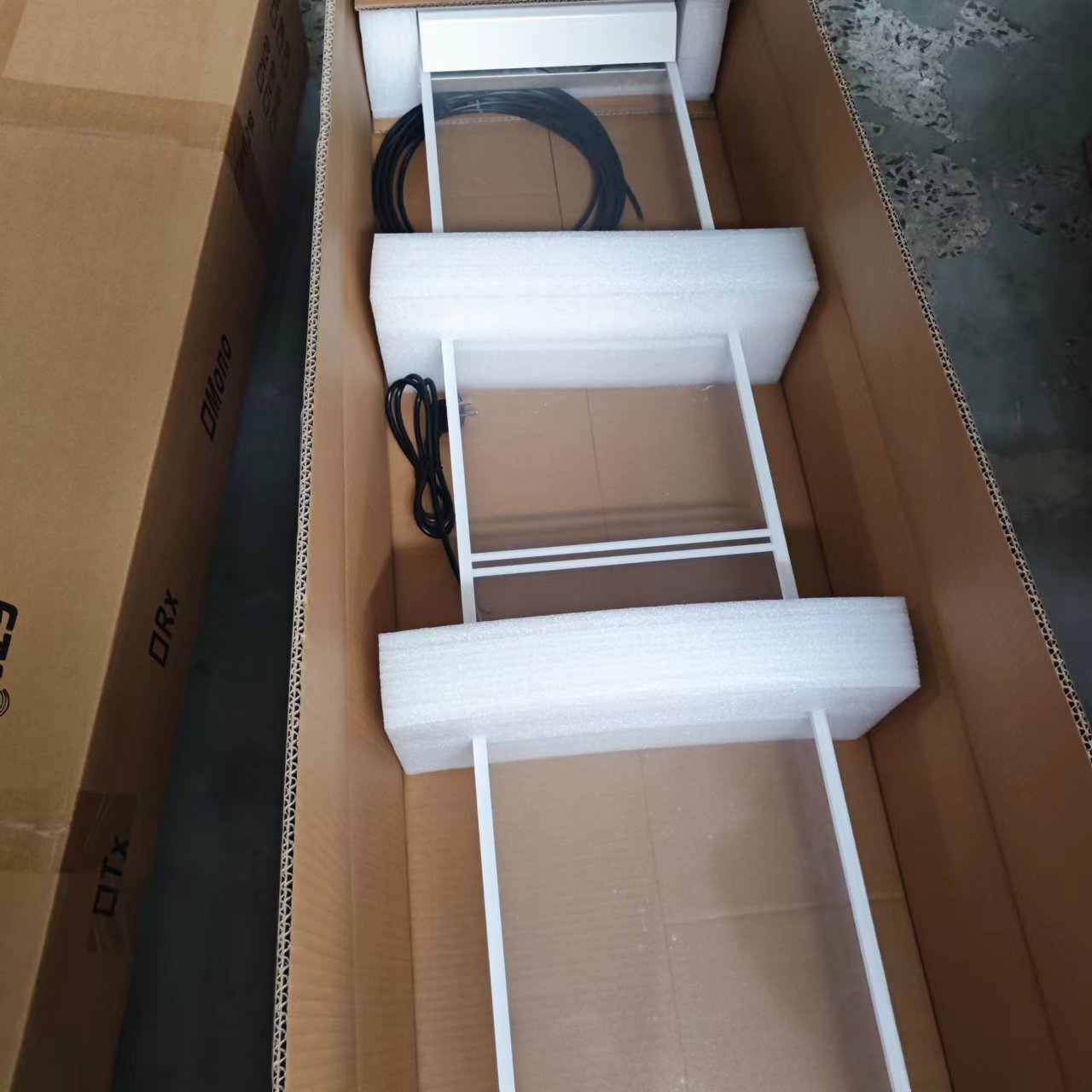

- Inner package: Whole machine wrapped with pearl cotton + foam shockproof layer, fully protect acrylic panel from scratch and collision damage.
- Outer package: 5-layer thickened hard carton, customized export-standard reinforced carton for sea and air transportation.
- Accessory independent packaging: Power cord, manual, screws and other accessories are packed separately to avoid loss.
- Sample service is available for quality testing and on-site effect verification
- Sample fee can be fully deducted in subsequent formal bulk order
- Support customized logo sample production according to customer requirements
- Sample delivery: Global fast express, arrive most European and American countries within 3-7 days
- Warranty Period: 2-year global official warranty for whole machine, lifetime paid maintenance service
- Free Replacement: Non-human damage quality problems, free replacement of parts or whole machine within warranty period
- Remote Technical Support: 24/7 online English technical team, provide remote debugging, fault diagnosis and operation guidance free of charge
- Spare Parts Supply: Permanent supply of original matching spare parts, low-cost maintenance after warranty expiration
