China UHF RFID Overhead Antenna Ceiling Access Control System-D30 manufacturers and suppliers

UHF RFID Overhead Antenna Ceiling Access Control System-D30

Short Description:

D30 ceiling is a high-performance UHF top-mounted smart device. It complies with ISO18000-6C protocol. The working frequency band covers 902MHz~928MHz (FCC). A built-in phase-controlled high-gain antenna array is inside. It has the characteristics of fast and accurate positioning, automatic identification of moving direction, contact-less triggering, long recognition distance, strong multi-label recognition ability, strong anti-interference ability, good scalability, and easy installation etc. D30 can be widely used in clothing stores, supermarket retail, book file management, personnel access management, fixed asset management, intelligent warehousing management.

Item specifics

Brand Name:ETAGTRON

Model Number:D30

Type:RFID SYSTEM

Dimension:300mm×300mm×50mm

Color:white

Working Voltage:110~230V 50~60HZ

Send email to us

Product Detail

Product Tags

Product Description

UHF Intelligent Top Mounted RFID Gate Reader Ceiling Type For Shopping Center

Helps reduce shrinkage
Item track and trace
Provides data to detect items that thieves attempt to steal most
Loss prevention visualization
Provides statistics and reporting on products that trigger an alarm
Remote maintenance and diagnostics
Advanced filtering to prevent false alarms caused by nearby tags

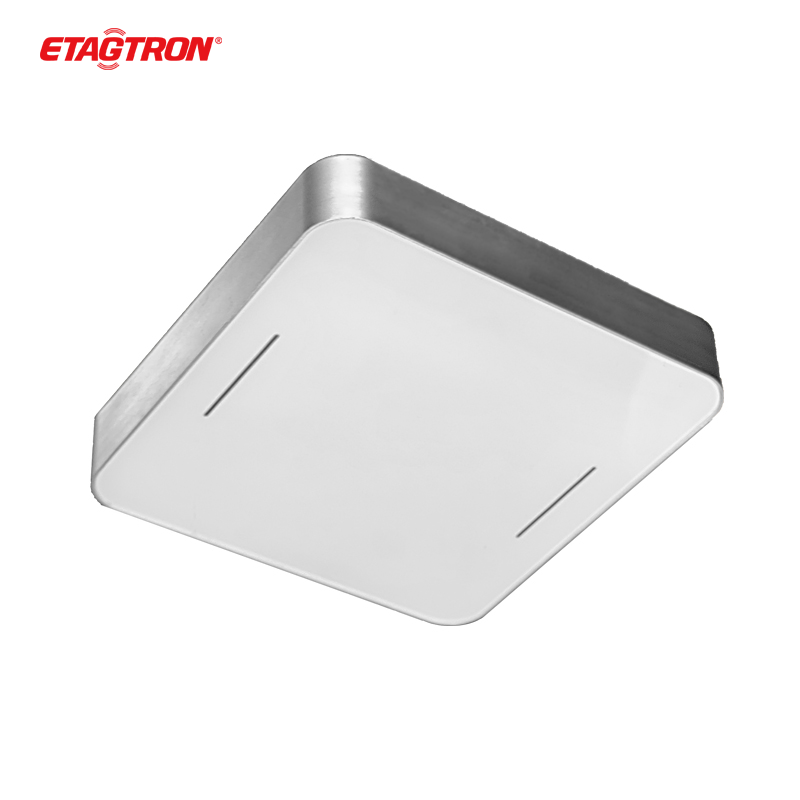

Ceiling-RFID-Reader-20m-Range-Access-Control-System-with-Alarm

Main Device Specifications

Product name	UHF RFID SYSTEM-D30
Device System	Android
RF Chip	Industry leading Impinj E710 reading module
Antenna	High-Gain Narrow-Beam Custom Antenna
Weight	Master 2.7KG, Slave 2KG
Size	30030050mm
Power Supply	DC24V 2.5A
Power	25W
Operating Temperature	-20℃ - +60°C
Storage Temperature	-40℃ - +85°C
Operating Humidity	10-95% RH non-condensing
Material	Metal+ABS
Size	1517326141MM

UHF RFID Data

RFID Detection Distance	0m~5m(affected by transmission power, tag type and application environment
Supported protocol	ISO18000-6C
Label Reading Performance	Wide Tag Reading Distance RangeAdapts to diverse application scenariosTag Recognition Speed: 200 tags/second.
Supported Frequency Bands	China: 920MHz～925MHz FCC: 902 MHz~928MHz
Communication Interface	RJ45

Product Function

Built In Radar Sensor

When an object passes by, it will be detected by radar, which can determine the direction of entry and exit, give sensitive alarms, and ensure safety and reliability.

Multi Tag Reading Capability

The product has excellent performance, with a good anti-collision mechanism and stable multi tag recognition ability. It has extremely strong reading ability and no missed readings.

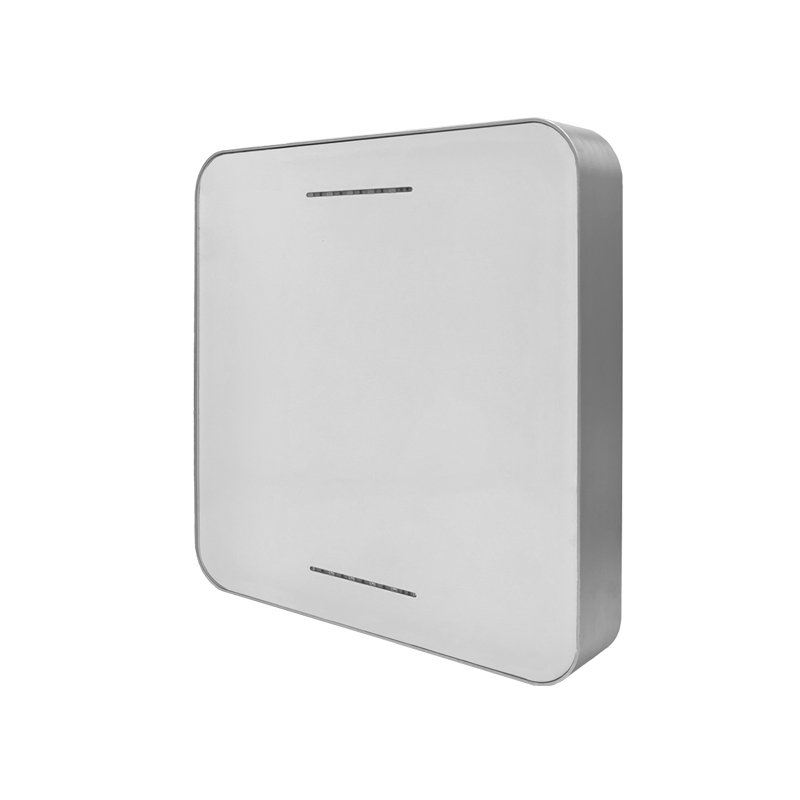

Optimize-RFID-Reader-Antenna-Coverage-And-Reading-Speed-RFID-Card

Narrow Beam Antenna

High gain narrow beam antenna effectively controls the recognition area, with few blind spots and high recognition rate, eliminating missed readings.

Strong Penetration, Ceiling Installation

The installation and placement of the ceiling channel are more flexible, and it can easily read label data even when installed in the ceiling interlayer. It has strong penetration and can reach a maximum height of 3 meters.

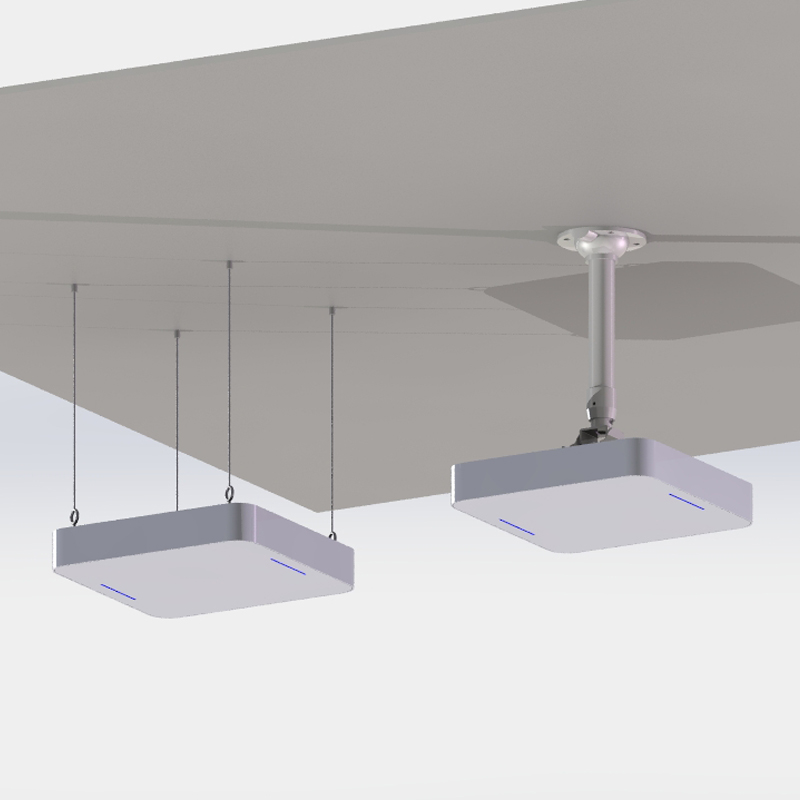

RFID-Loss-Prevention-ceiling-access-controls-clothing-store

Advantages of RFID

♦RFID simplifies the process of apparel and retail management by offering end to end solutions to track, count and ship goods from the warehouse and control the goods every step the way to point-of-sale. Store inventory is handled seamlessly with an RFID system for visibility, efficiency and security.
