China UHF Access Control Alarm Anti-theft RFID System-PG550 manufacturers and suppliers

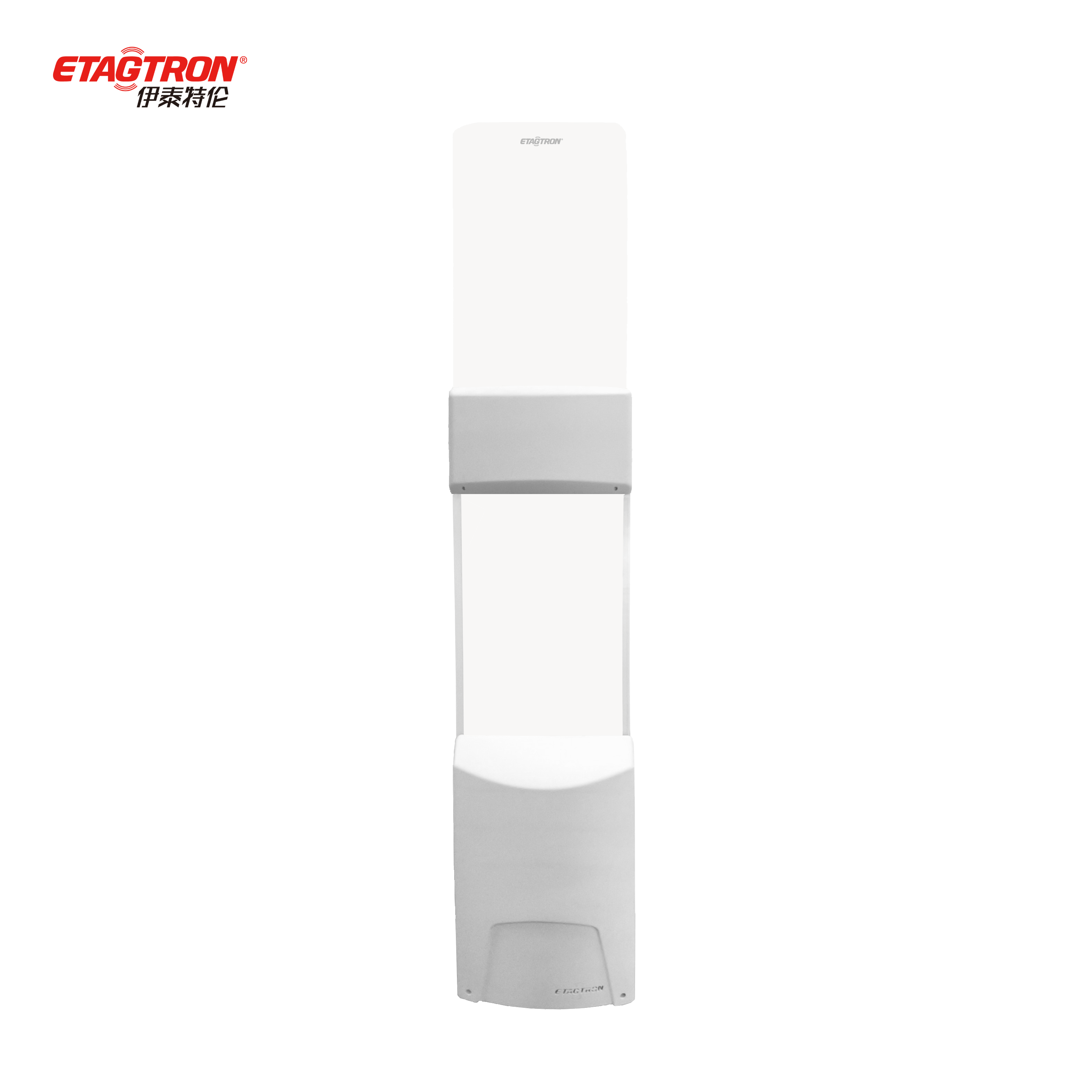

UHF Access Control Alarm Anti-theft RFID System-PG550

Short Description:

RFID Gate Reader system is efficient IoT solutions that utilize RFID technology, spatial sensing recognition or phased array technology to provide multifunctional recognize protection for RFID items. Through precise algorithms, RFID access control quickly identifies and records RFID tags passing through the portal, analyzes the permissions and information associated with items, and leverages AI for compliance analysis, effectively preventing unauthorized access and theft.Featuring 4x polarized antenna arrays and adaptive signal algorithms, achieves 99.99% detection accuracy even with metal interference.

Item specifics

Brand Name:ETAGTRON

Model Number:PG550

Type:RFID system

Dimension:H*W*T 1521*305*158mm (Acrylic thickness is 20mm)

Color:white

Working Voltage:110~230V 50~60HZ

Send email to us

Product Detail

Product Tags

Product Description

UHF Access Control Alarm Anti-theft RFID System

Dual frequencies RFID
Item track and trace
RFID-based alarm
Loss prevention visualization
Replenish stolen items to reduce out-of-stocks
People counting and flow statistics

Product name	UHF RFID System-PG550
RF CHIP	Impinj E710 chip
Antenna	Dual industrial grade high gain high-performance antenna
Dimensions	HWT 1521305158mm (Acrylic thickness is 20mm)
Weight	Master 16KG/pc, Slave 13KG/pc
Voltage	AC220V
Power	＜30W
Operation Temperature	‐10~+50℃
Working Humidity	10%~90%
Storage Temperature	‐20~+70
Power supply	Power adaptor
Protocols	ISO 18000‐6C/EPC Global C1G2
Material	Acrylic
Interface	RJ45，RS232
Detection range	1.8ms(actual installation and detection distance of Channel door)
Working model	Master+Slave
Opreation voltag	110-230v 50-60hz
Input	24V
Working temperature	-20℃~+70℃
Storage temperature	-40℃~+70℃
Frequency	FCC，902~928MHz CCC，920~925MHz
Label reading performance	The range of tag reading distance is wide,adjustable From 10cm to 2m,to adapt to different application scenarios.Multi tag recognition ability:>50tags Tag recognition speed:>50sheets/second

Product Details

Customized Logo on the base cover

Customize your logo to make it more attractive.

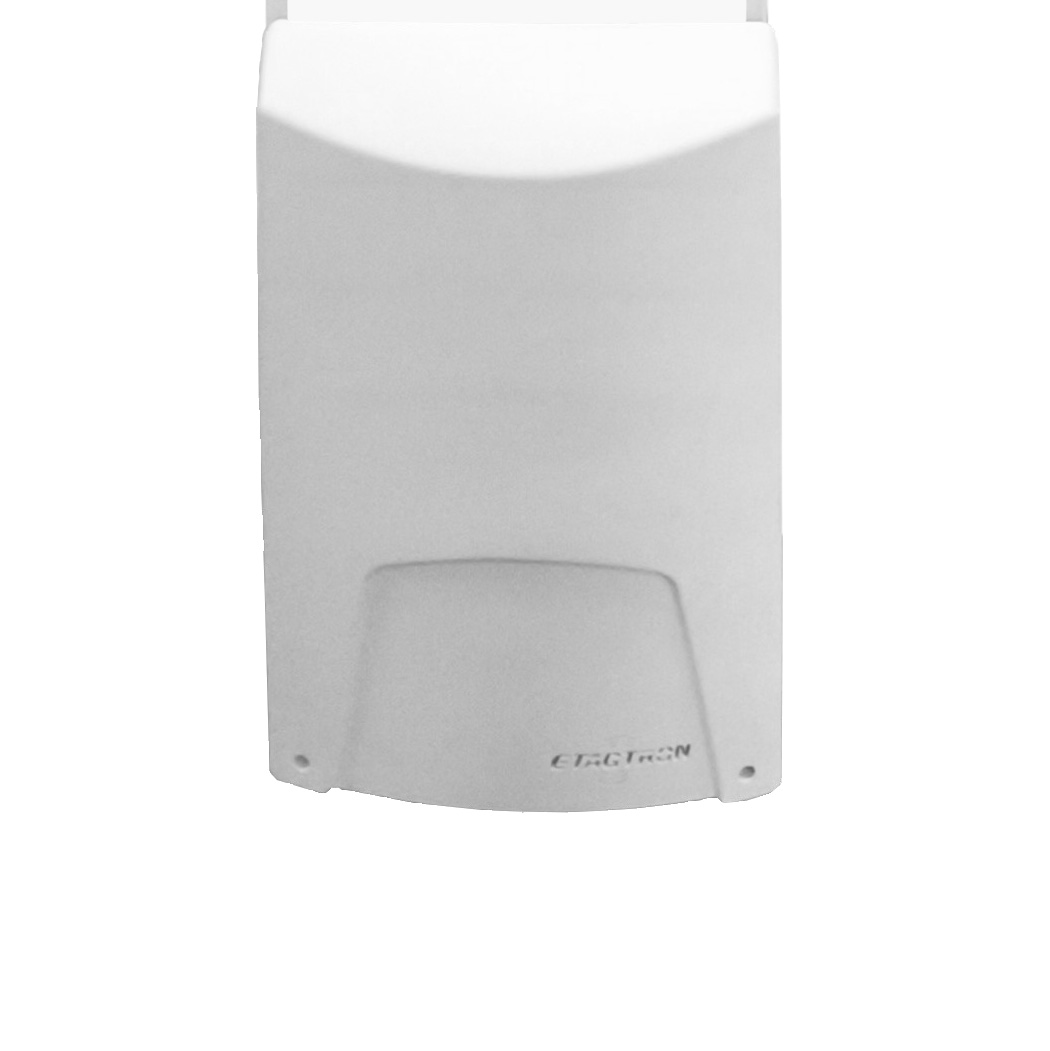

Acrylic Material

Superior acrylic material,elegant and transparent

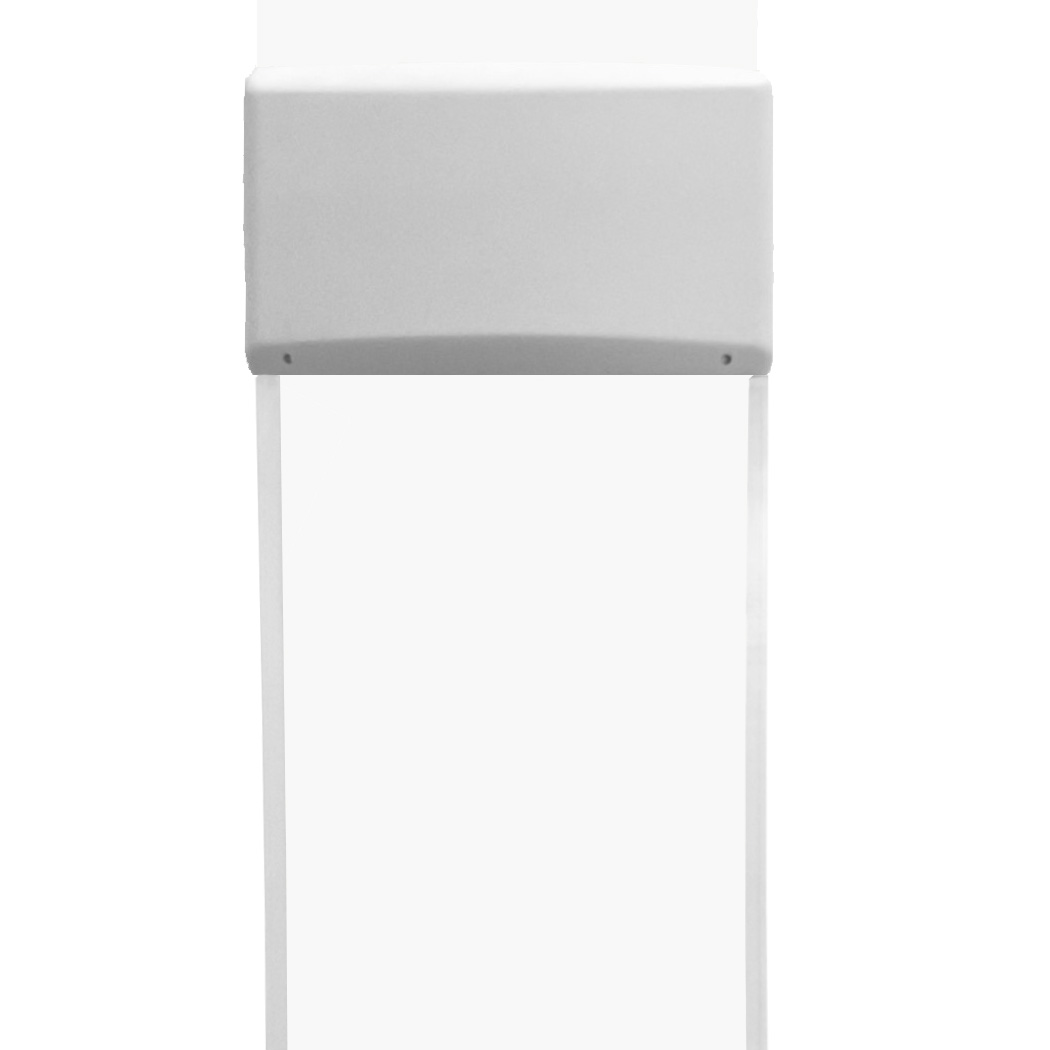

LED Light

Integrated audible and visual indicators immediately notify store associates of alarm events

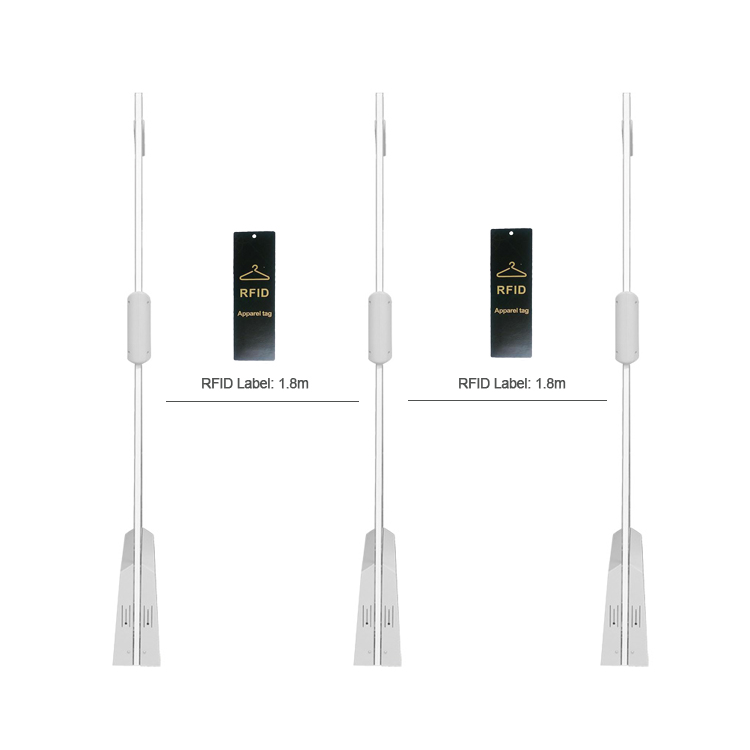

Detection Distance

RFID simplifies the process of apparel and retail management by offering end to end solutions to track, count and ship goods from the warehouse and control the goods every step the way to point-of-sale. Store inventory is handled seamlessly with an RFID system for visibility, efficiency and security.
